Air Circuit Breaker Panel

ACB panels use air circuit breakers as the main incomer and outgoing breakers on low-voltage (LT) systems that carry high currents. The breakers give adjustable overload, short-circuit and earth-fault protection, and can be drawn out for safe maintenance.

• Main LT incomers from transformers and DG sets
• Power distribution in plants and large buildings
• Bus coupler and changeover arrangements

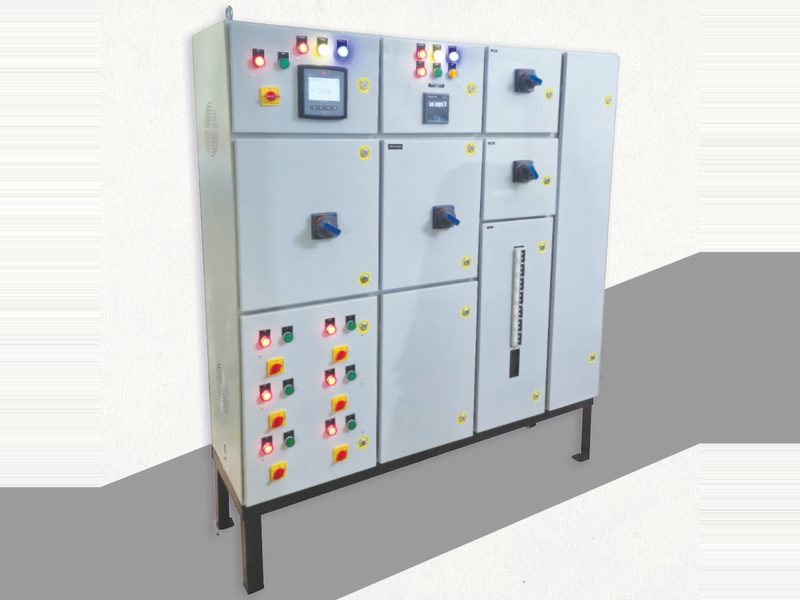

Automatic Power Factor Correction Panel

APFC panels switch capacitor banks in and out automatically as the load changes, keeping the power factor close to unity. That cuts reactive-power charges and penalties, reduces losses and frees up transformer capacity.

• Factories with heavy motor loads
• Commercial buildings and malls
• Avoiding utility power-factor penalties

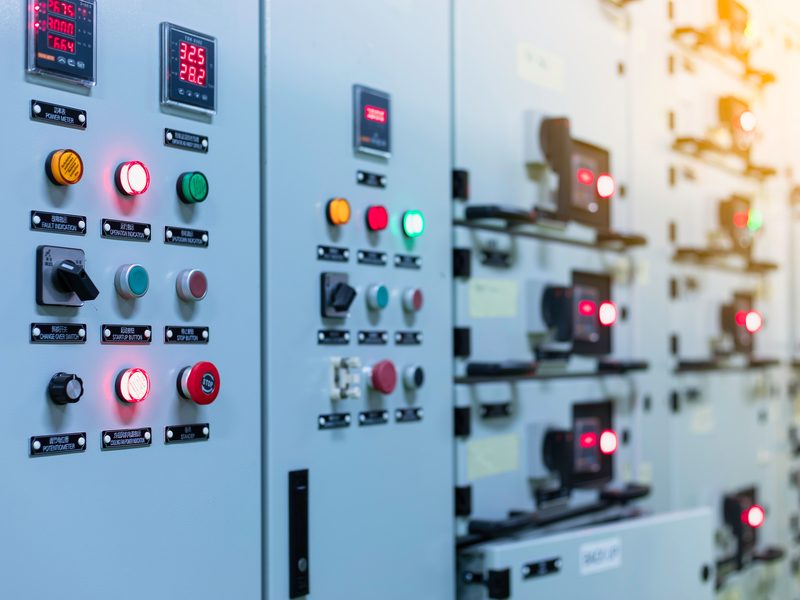

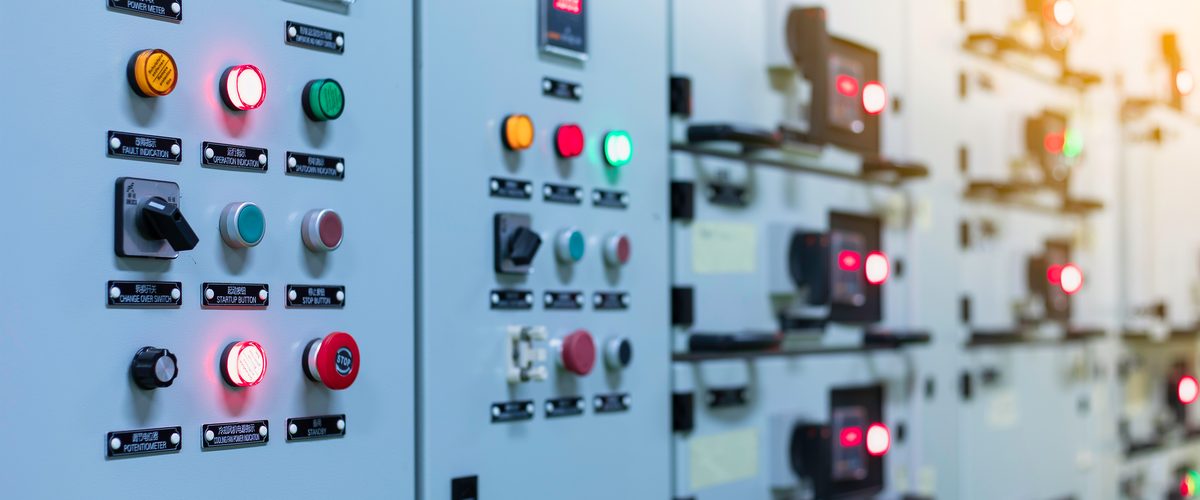

Motor Control Centre Panel

Motor Control Centres bring the starters, protection and controls for many motors together in one panel. Each feeder can use DOL, star-delta, soft-starter or VFD starting, with overload and short-circuit protection.

• Process and manufacturing plants
• Water, pumping and treatment stations
• Conveyors, crushers and material handling

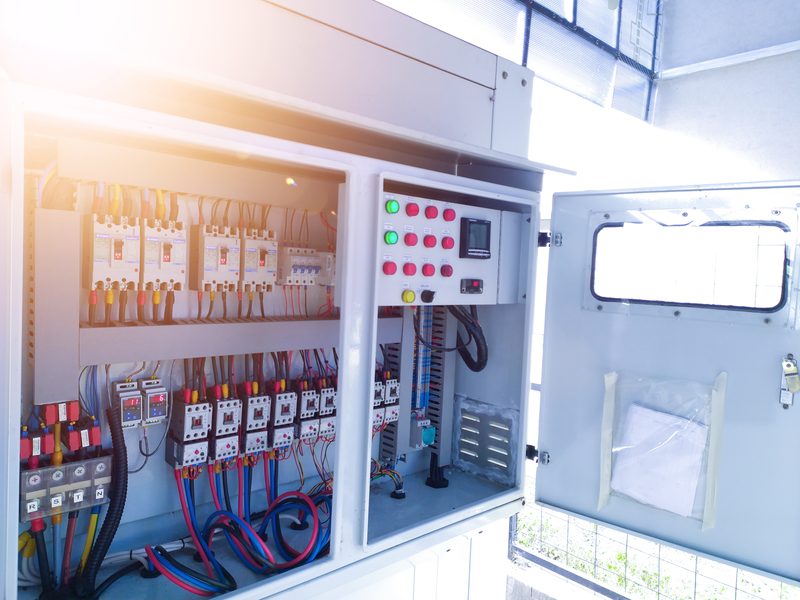

Power Control Centre Panel

Power Control Centres take incoming power from transformers or DG sets and distribute it to the plant's sub-panels. They house the main incomer breakers, busbars, metering and protection for the whole LT system.

• Main LT distribution for plants
• Transformer and DG set incomers
• Large commercial and institutional buildings

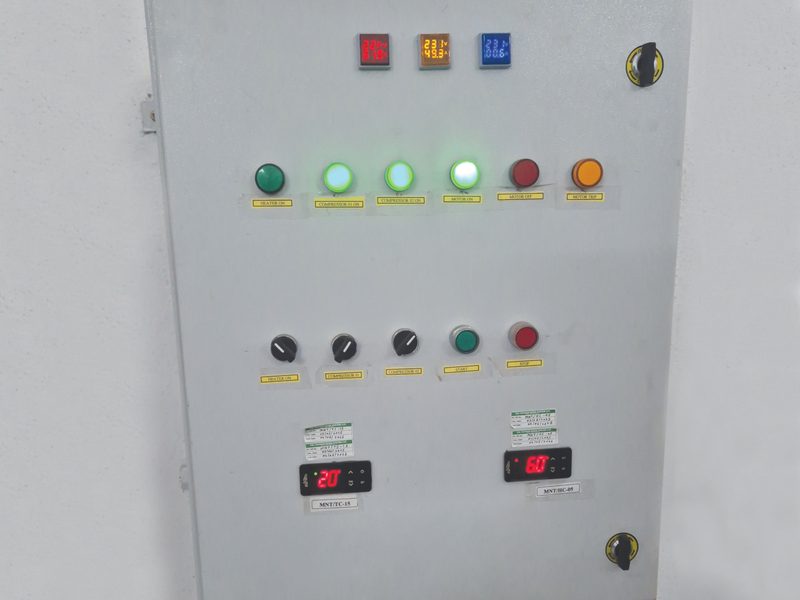

Air Handling Unit Control Panel

AHU control panels run the blowers, dampers and valves of air handling units. They manage motor starting, fan speed, safety interlocks and temperature set points for the building's HVAC system.

• Offices, malls and hospitals
• Clean rooms and pharma facilities
• Integration with building management systems

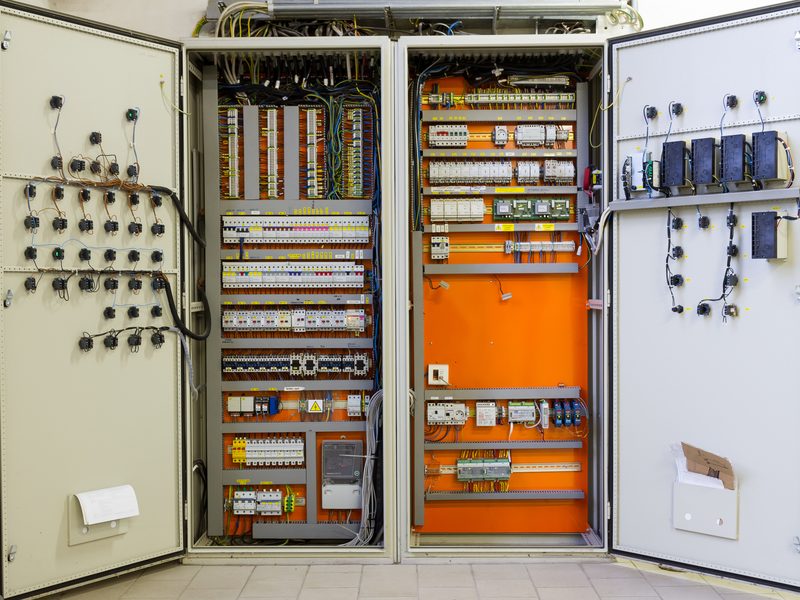

Variable Frequency Drive Panel

VFD panels control motor speed by varying the supply frequency. Matching speed to the actual demand gives soft starting, precise process control and large energy savings, especially on pumps and fans.

• Pumps, fans and blowers
• Conveyors and process lines
• Compressors and cooling towers

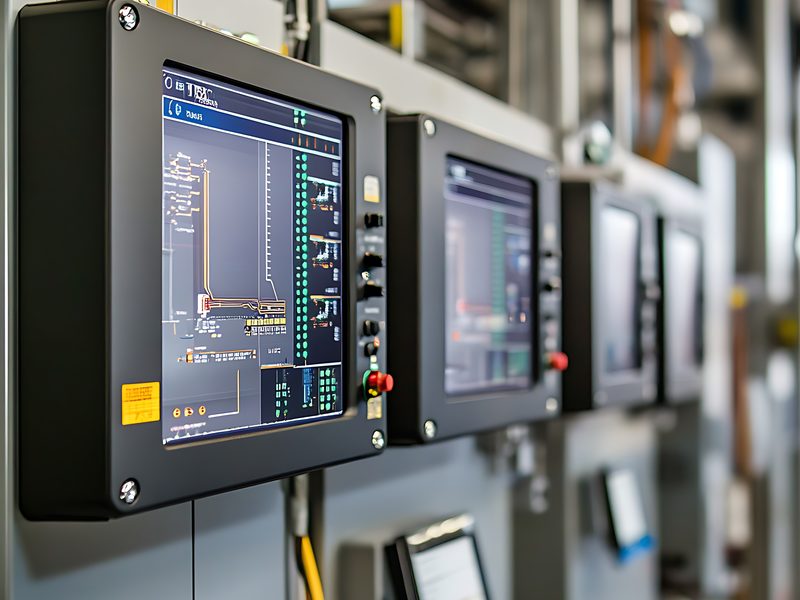

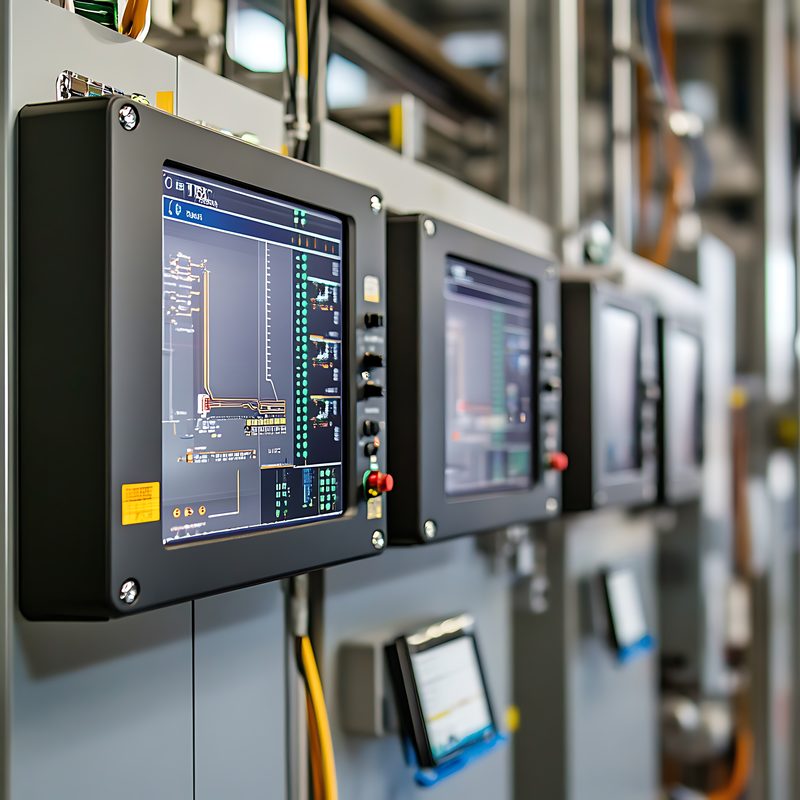

Programmable Logic Controller Panel

PLC panels automate a process using a programmable controller, I/O modules and an HMI touch screen. They read sensors, run sequences and safety interlocks, and can log data or connect to a SCADA system.

• Process and plant automation
• Machine and packaging-line control
• Remote monitoring and SCADA

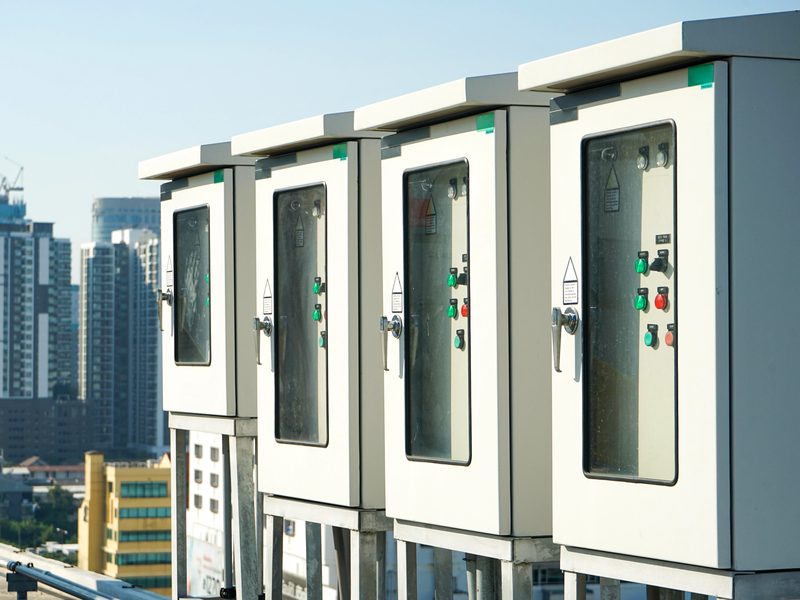

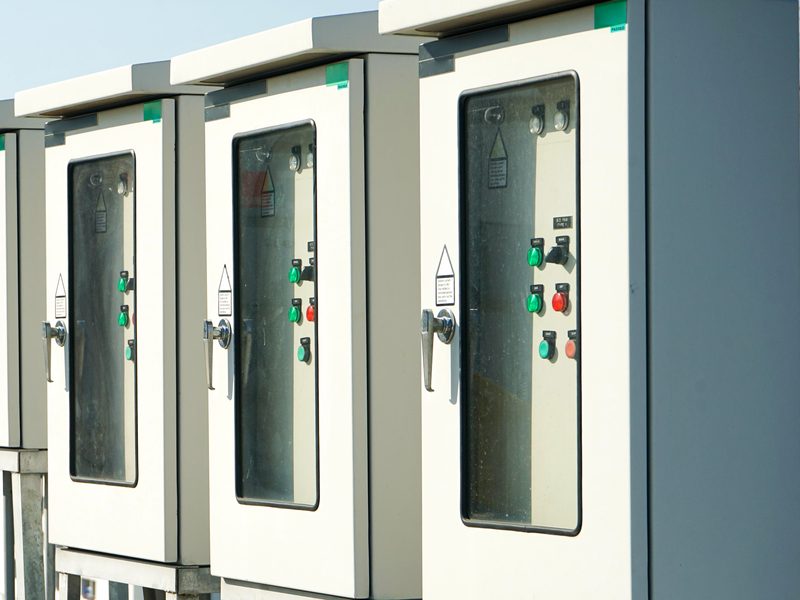

Solar AC Distribution Board

Solar ACDB panels connect the inverter output to the building supply or the grid, with isolation, surge protection and metering. They are built in weatherproof enclosures for outdoor rooftop and ground-mount duty.

• Rooftop solar on homes and factories
• Ground-mounted solar plants
• Grid-tied and net-metering systems
